Example of graph fed by a report (Page 3)

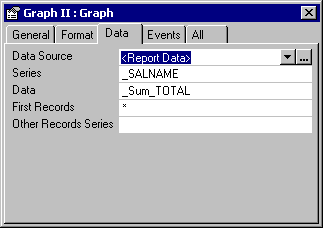

A graph is added in the AREA Group Footer with the following properties:
The value of the Data Source text box is <Report Data> by default, instead of using the same query which the report is based on.
SALNAME: the « _SALNAME » report zone is used to retrieve the Sales Person's name (SALNAME field) from the detail block. (See Series)
Sum_TOTAL: the « _Sum_Total » report zone is used to retrieve the Sum_Total field from the detail block. (See Data)
Information: it is possible to limit the graph to the first N records to allow a customized label to be displayed for additional data series
